Wing Angle measurement kit

Wing Angle measurement kit

72,95104,95 incl. VAT

Foil Wing Angle meet kit. We have specially developed this measuring kit to be able to measure the angle of the wings in relation to each other or in relation to the fuselage.

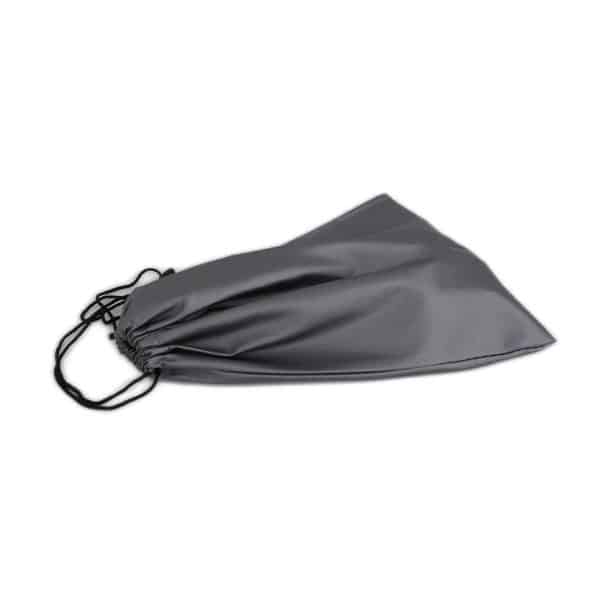

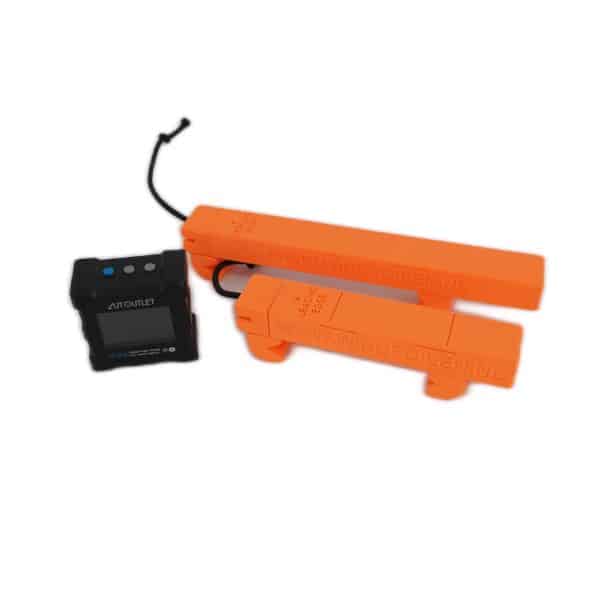

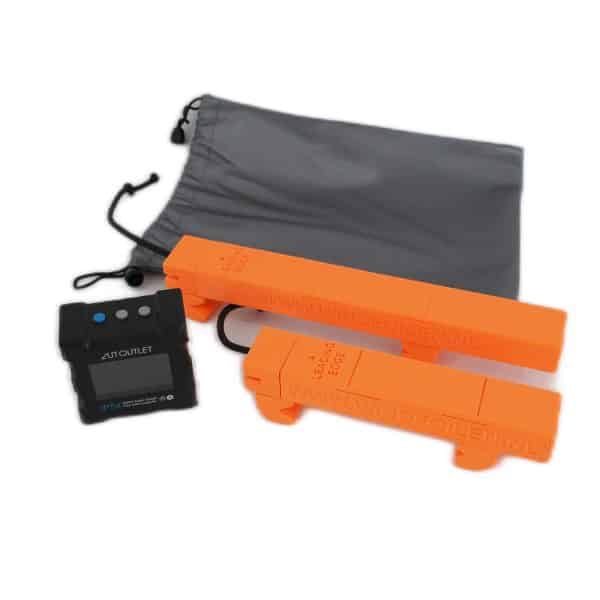

The set consists of 2 clamps that are firmly fixed on the wings, so that you can measure the angle very accurately with the optionally supplied meter. The set comes with a storage bag.



Aantal


Need help? Ask Marco

We are happy to help you with expert advice

icon +31 612138112 icon info@windfoilen.nl



Description

Foil Wing Angle meet kit. We have specially developed this measuring kit to be able to measure the angle of the wings in relation to each other or in relation to the fuselage. The set consists of 2 clamps that are firmly fixed on the wings, so that you can measure the angle very accurately with the optionally supplied meter. The set comes with a storage bag.

Specs & Clamp Dimensions

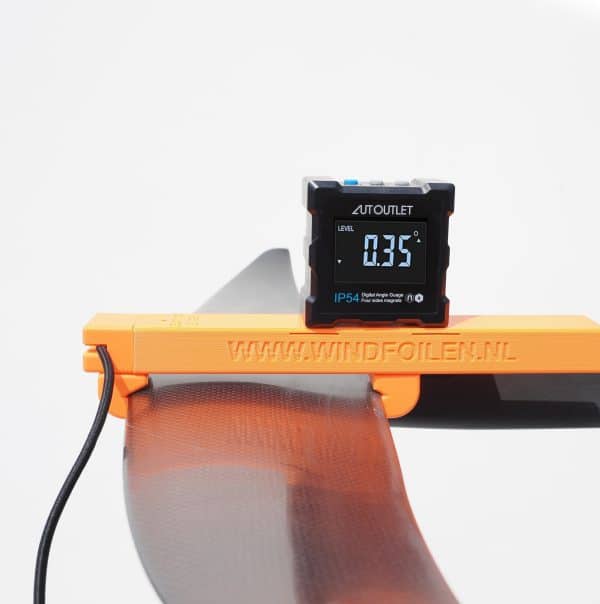

The clamps fit most freerace, race and slalom wings of the main wing and wind foils;

  • The maximum chord size of the clamp for the front wing is 179 mm

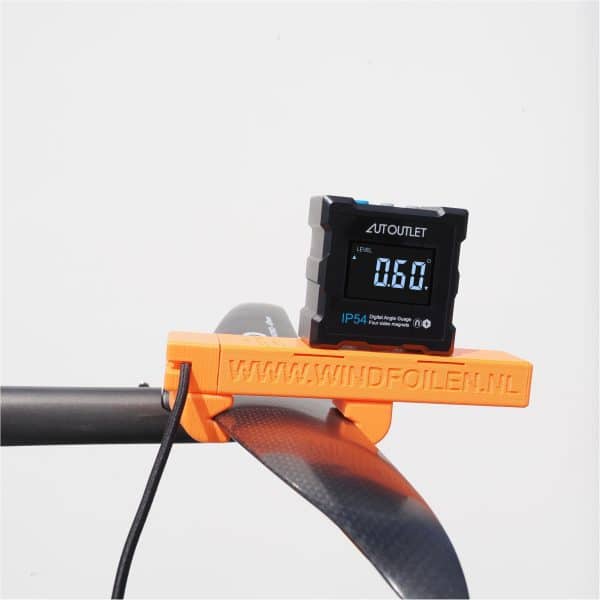

  • The maximum chord size of the clay for the tail wing is 108 mm
  • The clamps are manufactured in such a way that they do not damage the wings!
  • There are metal strips in the clamps, so that the magnetic meter stays in place
  • Swivel clamps for optimal fit leading edge

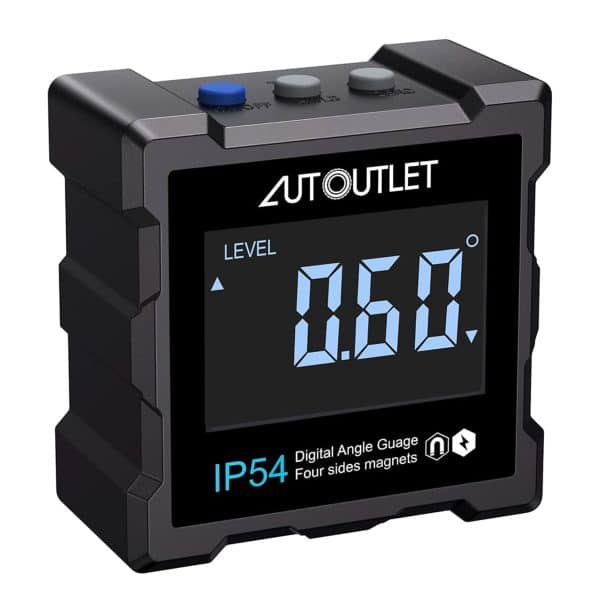

Specs of the Digital Meter

  • The meter is splash-proof (IP54)
  • The housing is magnetic
  • Nice operation with large buttons at the top
  • Backlit display
  • 2 x AAA batteries (included)
  • High accuracy (0.2 degrees)
  • High repeatability accuracy
  • Works well in cold conditions



Additional information

Windfoiling or wingfoiling?

,

Product group

Groepen binnen accessoires

Brand

Incl / Excl Digital meter

Including Digital Guage meter, Exclusive Digital Guage meter

Alle specificaties
